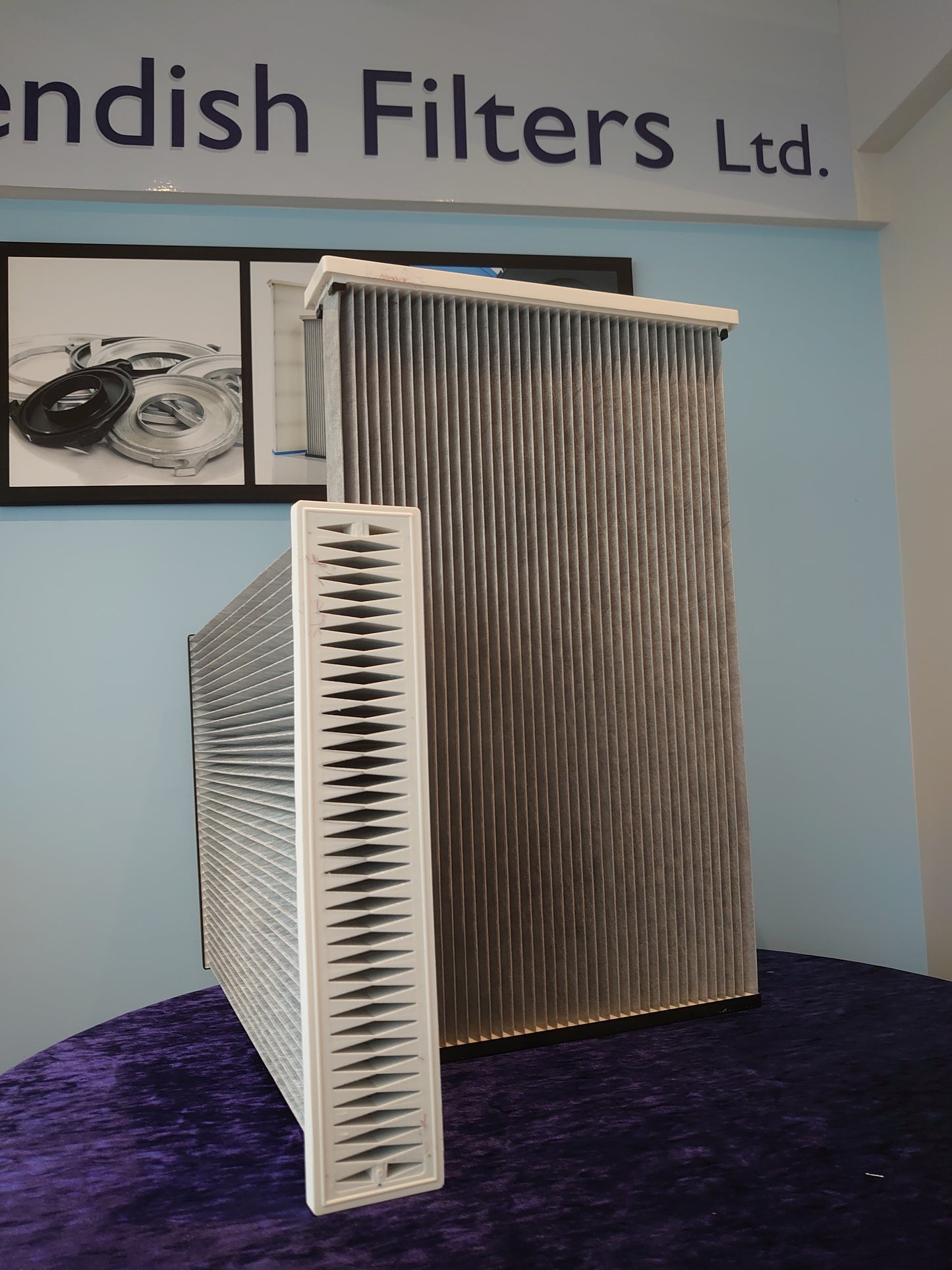

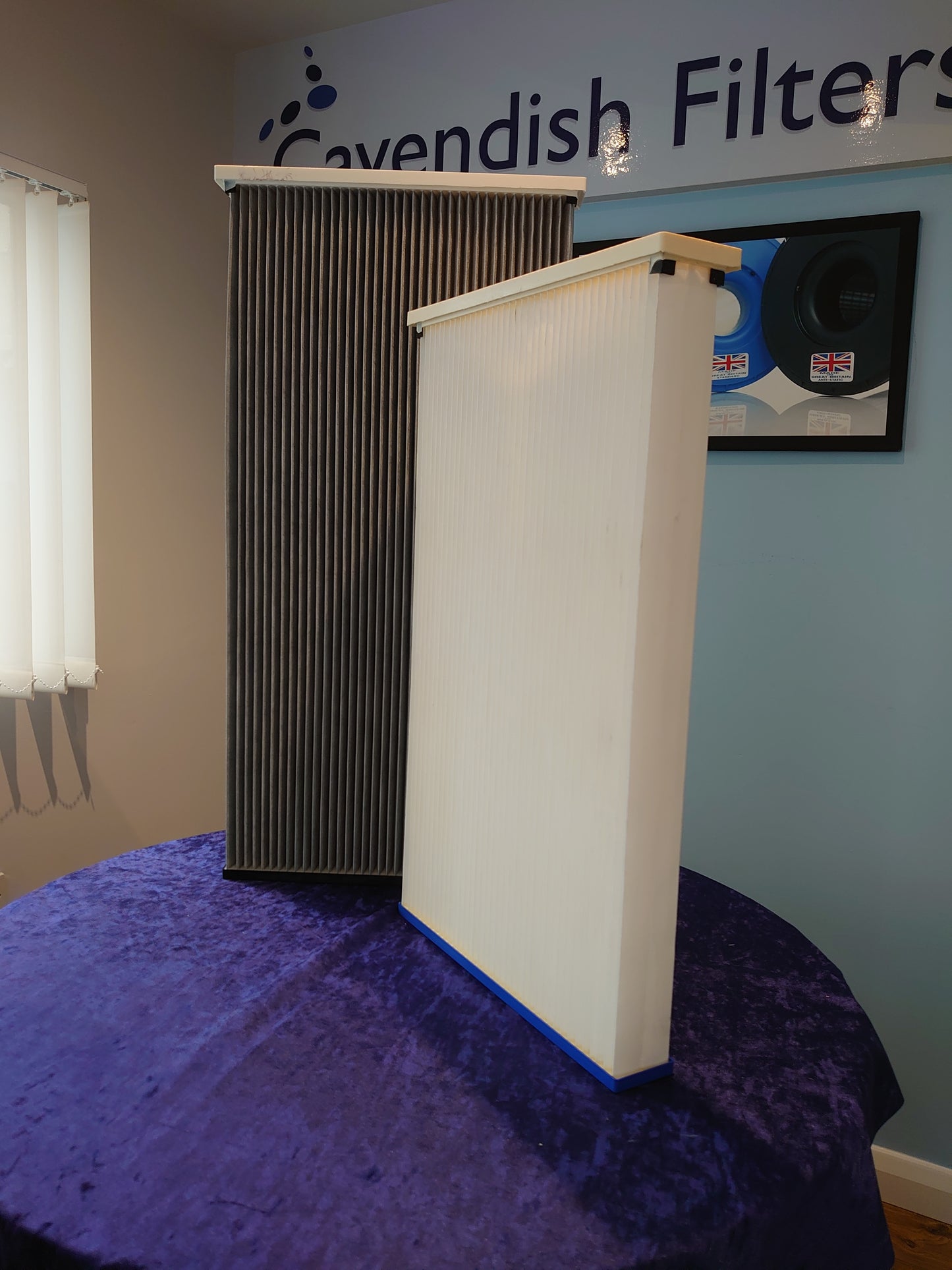

DONALDSON UNICELL Equivalent – Cell Cartridge Filter

Type: Dust Filter

Shape: Panel

We manufacture a complete range of Unicell type cartridge  filters which include the two size 70mm x 475mm x 1004mm with 5.00M² or 70mm x 475mm x 800mm with 4.00M². These two sizes of cell filter can be made using any of the following filter media: 260g Spunbonded Polyester, Anti Static finish / Oleophobic coat/ PTFE Coat or Membrane.

Also available are a choice of special finishes to suit most applications!

Buy Our Donaldson Cell Filter Equvalents With Confidence

  • As with all of our filters, we make our Donaldson Unicell Filter equivalents by hand at our factory in Leicester, United Kingdom
  • All of our filters are made using high quality medias.
  • We have over 30 year of experience, exporting our dust filters to businesses worldwide
  • We can manufacture bespoke dust filters to fit any criteria. If you can’t find what you are looking for, click here to request a quote based on your specifications.

Medias & Applications

Filter Manufacture

Polyester, Anti Static, Cellulose Blends, Nano and other coatings.

Applications :- A few suggestions

  • Carbon Impregnated 80/20 Cellulose/Polyester FR: A new introduction to our range of medias. This media can be used on a number of ATEX applications, with the benefit of increased surface area, to our Anti Static Polyester range. This allows Dust Collectors to cope better with heavy dust loads, whilst allowing manufacturers to install smaller  Dust Collector Units on new installations.
    This media is ideal for applications with  an explosion risk, such as :- Stainless Steel Blasting, Wood Cutting, Waste Recycling, Powder Coating, to name a few.

    Carbon Impregnated 80/20FR

  • 80/20FR :- Performs well on fine dust and some less abrasive dust. High Filtration Efficiency with Flame Retardant coating, Uses :- Pharmaceutical, Grinding, Powder Coating.
  • NanoFR.:- Premium Performance on extra Fine dust and fume. Ideal for Very fine Particulate, With Flame Retardant Coating Uses:- Welding Fume,  Plasma/ Laser Cutting.
  • STD Polyester 260g :- Wide pleat spacing, Excellent particle release, Uses:- Cement dust, Sand Blasting dust, Ceramic dust.
  • Anti Static Polyester 260g:- As above but Aluminium Coating, Uses:- S Wood Dust, Zinc Dust and other combustible dust.
  • PTFE Coat/Membrane, available on Polyester :- A Hydrophobic (Water repellent) Coating/Membrane, Uses :- Milk Powder, Sugar or other fine/and or sticky dust.
  • Other finishes/coatings available to suit most applications. Please contact us for more information.

Made To Order

We can manufacture bespoke dust filters to fit any criteria. If you can’t find what you are looking for, just fill in the contact form at the foot off the page.

Export & Shipping

We have 30 year of experience, exporting our products to businesses around the world.

Customers within Singapore, Malaysia and The Philippines should contact our Agents Intair Asia.

Lead Times

We can turn around cartridge orders faster than many large manufacturers. Our flexible production facilities allow us to get your filters to you quickly.

Made In The UK

We make all of our filters by hand at our factory in Leicester, United Kingdom.

Enquire Now

Need Help? Talk To The Experts

Getting the right replacement filter cartridges can be difficult, especially if equipment manufacturers have merged or ceased trading.

We have 30 years experience in filter manufacture and can help you find a solution to your replacement filter needs.

Call Us Today On +44 0116 3190152
